Panerai: LAB-ID Luminor 1950 Carbotech

A revolutionary watch demonstrates the ability of Panerai’s laboratorio di idee to innovate. Thanks to a brilliant development tapping into the infinite potential of carbon, the new creation is a case with exceptional characteristics, a completely new deep black dial and a movement needing no lubrification, guaranteed for 50 years.

CarbotechTHE CARBOTECH CASE

The Luminor 1950 case 49mm in diameter is made of carbotech, a composite material based on carbon fibre, which was introduced into the world of watchmaking by Panerai. As well as ensuring exceptional technical performance, carbotech has a dense, uneven blackness which varies with the cut of the material, making each individual example different from all the rest, and unrepeatable.

The structure of carbotech enhances both the appearance and the performance of the material, which is used to make the case and the bridge device with its locking lever protecting the winding crown, thus helping to ensure the watch’s water-resistance to 100 metres. To form the sheets of carbotech from which these components are made, very thin sheets of carbon fibre are pressed together at a controlled temperature under very high pressure with the organic polymer PEEK (Polyether Ether Ketone), which links the composite material, making it yet more resistant and reliable. The carbon fibres used are very long, so as to achieve great aesthetic uniformity. The sheets are superimposed and pressed together in such a way the orientation of the fibres of each layer is out of phase with the one below or above it. This structure has the effect of increasing the mechanical properties of carbotech compared to those of similar materials or others often used in high quality watchmaking, such as ceramics or titanium. Carbotech is actually lighter and more resistant to external stresses, as well as being hypoallergenic and not subject to corrosion.

Carbotech

THE TECHNOLOGY OF CARBON NANOTUBES

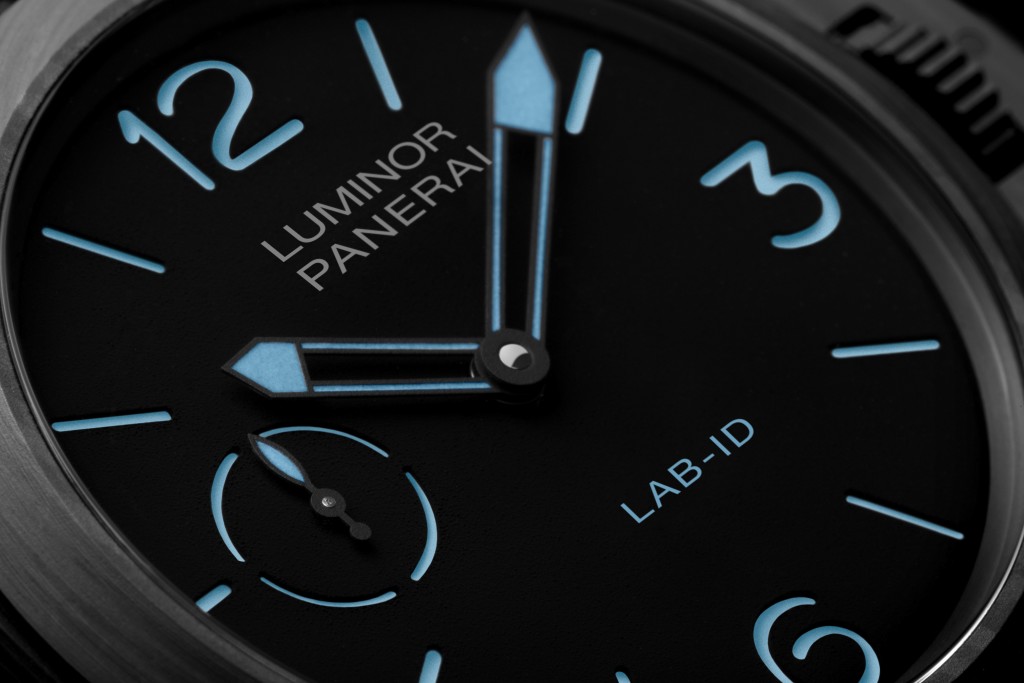

The dial has the classic sandwich structure invented by Panerai, in which the luminous substance (in this case blue-coloured Super-LumiNova) emerges through the openings made in the dial corresponding to the hour markers and the small seconds dial, ensuring excellent visibility and legibility.

In the PANERAI LAB-IDTM these characteristics are further enhanced by the innovative materials used: the dial has a coating of carbon nanotubes, used for the first time for the display dial. The optical properties of this special coating have been specially developed to absorb light, reducing reflection to a minimum and giving the dial a particularly deep black appearance, forming a spectacular contrast with the blue of the hour markers and hands, which follow the classic Panerai design.

Because it is not possible to print or stamp a dial with these characteristics, all the figures are formed directly on the dial crystal, to which a double anti-reflective treatment has been applied.

Carbotech

THE NEW P.3001/C MOVEMENT

The new PANERAI LAB-IDTM has a P.3001/C handwound calibre with a power reserve of three days, now presented for the very first time in an extraordinarily innovative version, semi-skeletonised, completely without additional lubrication and with only four jewels. By using a wide range of solutions, specially devised for the individual parts of the movement and associated with the unique properties of carbon, the plates, bridges, barrels, escapement and anti-shock device use self-lubricating and dry lubricating materials, and are hence exempt from any liquid lubrication. These solutions have revolutionised the need for maintaining and overhauling the calibre, enabling Panerai to guarantee it for no less than 50 years.

Carbotech

  • To remove the need for further lubricating the main bridges and the plate, these components are made of a completely new material: a low friction composite which integrates a Tantalum based ceramic. This new generation of composite is notable for its high percentage of carbon which minimises pivot friction, making jewels and their related lubrication unnecessary.
  • Also eliminated is the need to lubricate the escapement, as a result of making the main components from silicon and applying a special coating of DLC (Diamond Like Carbon) to the wheelwork.
  • A good two years of testing by the Laboratorio di Idee in the Panerai Manufacture identified the best type of coating (based on carbon) with which to treat the components of the two spring barrels of the 3001 calibre, so as to make conventional lubrication superfluous. The solution was to use a series of layers and sub-layers of coating, the surface one being coated with DLC.
  • Last but not least, a surface coating of DLC on the four jewels means that there is no need to further lubricate the Incabloc® anti-shock device.
    Most of the P.3001/C movement of the new PANERAI LAB-ID can be seen through the large porthole
    protected by a sapphire crystal which is set in the back of the watch, enabling the power reserve indicator to be read. The skeletonising of the bridges and the barrels makes it even easier to admire the technical excellence and finish of a calibre of extreme reliability and great precision. The movement’s distinctive features include a balance wheel which is no less than 13.2 mm in diameter, fixed by a bridge with twin supports and oscillating at a frequency of 3 Hz, and the device which stops the balance and returns the seconds hand to zero (seconds reset) when setting the time, so that the watch can be perfectly synchronised with a reference signal.

The new PANERAI LAB-ID is supplied with a black leather strap, with contrasting sewing in the same blue as the luminous details of the dial. (Price €.50.000,00)
